Offline Voice Curtain Kit

Offline Voice Control: No Internet, App or Smart Speaker Required

The voice module recognizes commands locally on the device. Say the configured wake word, then ask the curtain to open, close or stop. There is no need to connect to the internet, install a phone app or purchase an Alexa device or other smart speaker. Voice operation remains available when no home network is installed or the network is down, provided the system has power.

Support for Spanish and English adds a local-language control option for Spanish-speaking markets. Customers can use the commands in the corresponding language to control the curtain and sheer separately.

One Voice Module for Separate Control of Curtain and Sheer

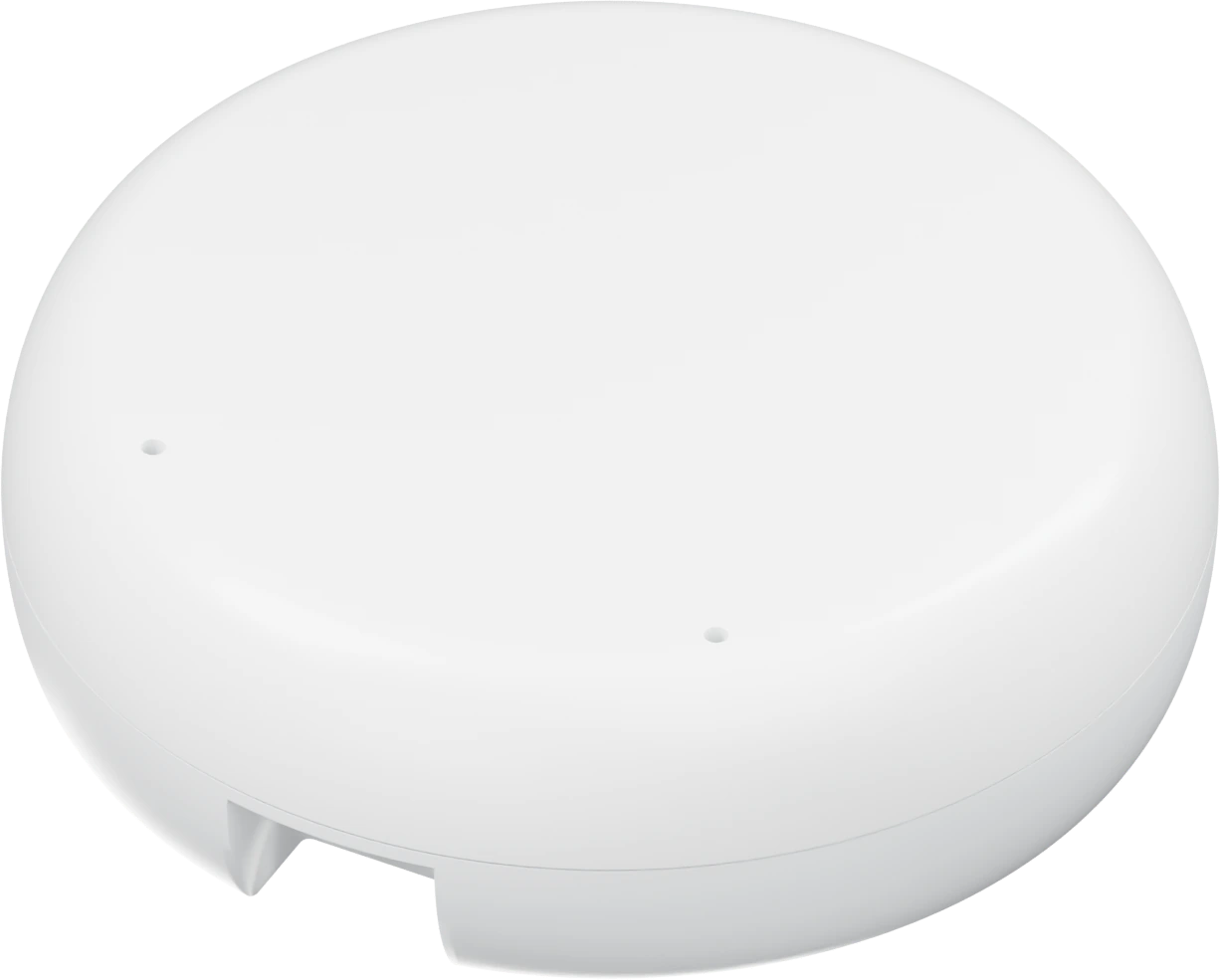

The voice module has a round enclosure, receives power through a USB Type-C port and is housed separately from the curtain motors. A dual-track kit uses two tracks, two motors and one voice module, with separate open, close and stop commands for the curtain and the sheer.

During the day, customers can open the curtain and keep the sheer closed to let light through. When they need to block light or increase privacy, they can close the curtain. Each layer responds to its own commands, so one voice control device handles both layers. A single-track kit is also available for a single curtain layer.

White Panel-Style Remote: Three Buttons and a Coordinated Finish

The remote measures 86 × 86 × 11 mm, uses a coin-cell battery and has three horizontal buttons for opening, stopping and closing the curtain. Its flat white face matches the round voice module for a coordinated appearance.

Both voice and remote control are available for everyday use. When customers prefer to operate the curtains without speaking, they can use the buttons. Multi-motor remote control can be supplied according to the project configuration, and button lettering can be customized.

Hand-Pull Activation: Pull the Curtain to Start the Motor

With the power on, pulling the curtain triggers the motor to continue opening or closing it. This familiar action provides another way to start powered movement alongside voice and remote control.

Manual Operation During Power Outages

The curtains can still be opened and closed by hand when the power is off. Customers can pull the fabric directly to adjust daylight, shade or privacy, retaining the basic operation of a conventional curtain. Voice control, remote control and motorized movement require power.

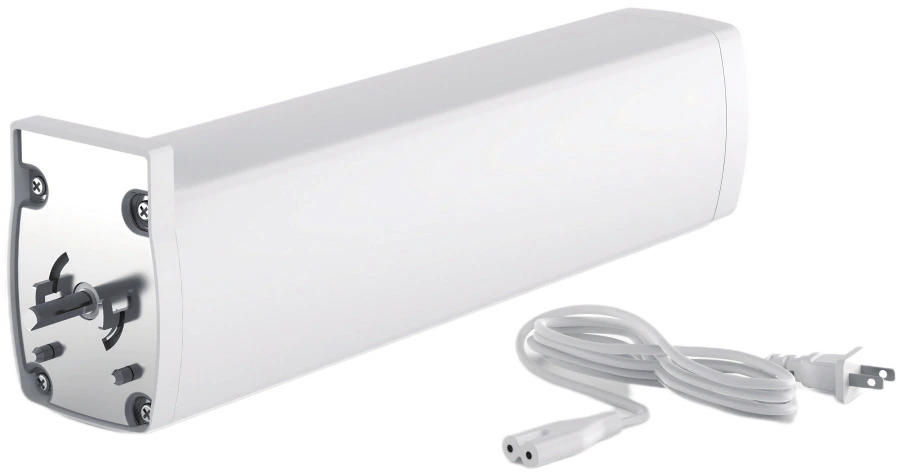

XGM-1.2N Motor: 1.2 N·m Torque and Specified Noise Below 40 dB

The kit uses a white XGM-1.2N curtain motor with a rated torque of 1.2 N·m, a linear travel speed of 14 cm/s and a specified operating noise level below 40 dB. It is suited to indoor motorized curtain installations in living rooms, bedrooms and similar settings.

The recommended load is no more than 30 kg, with a maximum load specification of 50 kg. Select the configuration according to track length, curtain weight and installation conditions. The motor operates on AC 100–240 V, 50/60 Hz, allowing supply configurations to be matched to the electrical requirements of different target markets.

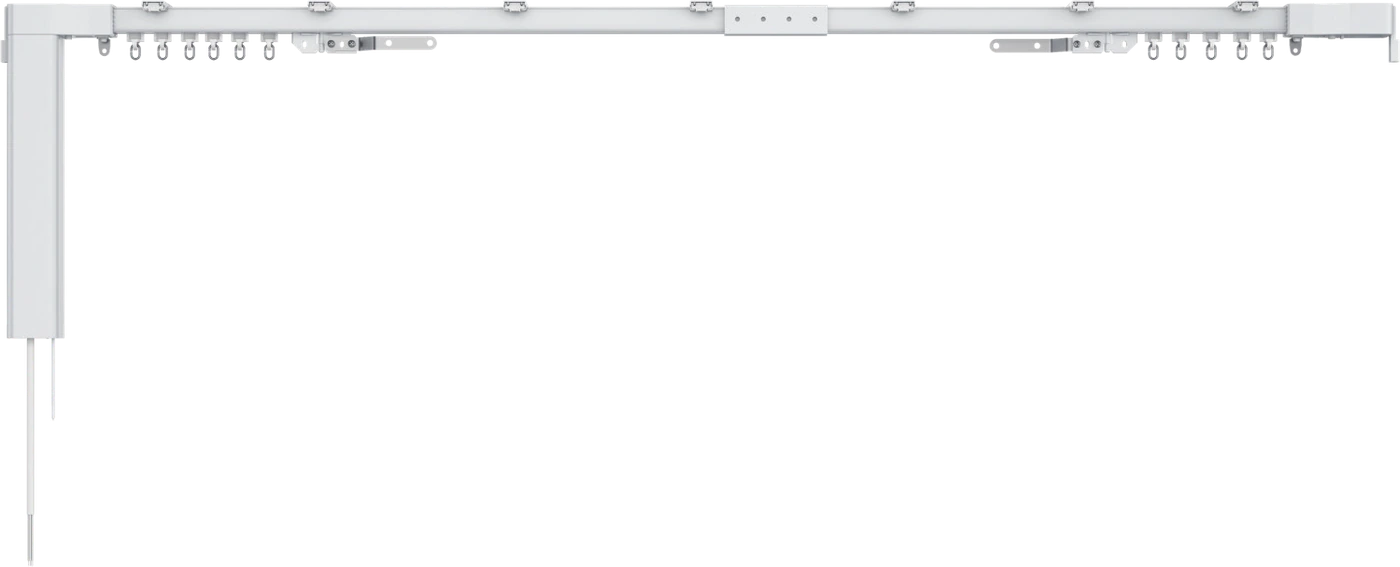

Made-to-Length Tracks and Installation Options

Straight tracks are supplied to the required project length in single-track or dual-track configurations. Options include left-opening, right-opening and center-opening curtains. Choose ceiling mounting or wall-bracket mounting, with the motor positioned on the left or right to suit the available space and power connection.

Window dimensions, curtain recess clearance, fabric weight and opening requirements provide the basis for the track, motor and installation accessory list. Dealers and installers can order the required components against a consistent set of project specifications.

Complete Kits and Individual Components

The voice-and-remote kit includes motors, tracks, drive and installation accessories, a separate voice module and panel-style remotes. A conventional remote-control kit includes motors, tracks, accessories and remote panels, allowing dealers to offer configurations that suit different customer requirements.

Motors, tracks, voice modules, remote panels and accessories can also be ordered individually as part of a matched configuration. Curtains and sheers are available as optional additions, with fabric, dimensions and finishing specified to suit the order.

Project Customization: Wake Words, Commands and Button Lettering

Wake words, voice commands and remote button lettering can be customized. Track length, single-track or dual-track configuration, opening direction and mounting method are selected for each project. Custom curtain and sheer requirements can be included in the same inquiry.
